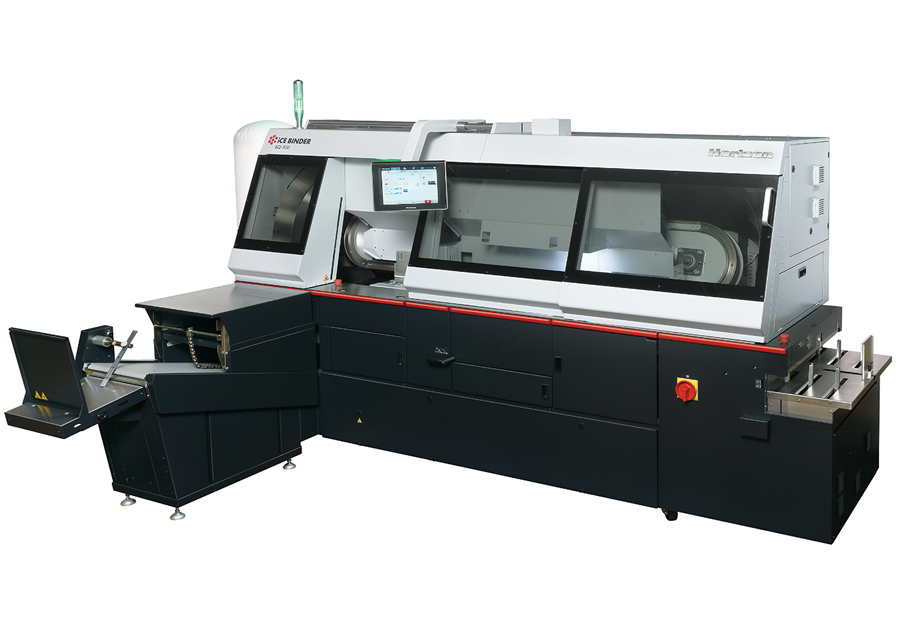

HIGH PRODUCTIVITY – The BQ-500 excels at and is the most productive binder for book-of-one production. In addition, productivity is increased on longer runs with decreased set-up time and improved system effi ciencies.
HIGH QUALITY – A uniquely designed template feature produces high quality books even with a non-skilled operator. Knowledge from a skilled operator can be stored in custom templates to produce consistent high quality books by any operator.
EVA & PUR – The BQ-500 supports both EVA and PUR hotmelt glue. Two diff erent tanks are available and interchangeable for each glue type.
CONFIGURATION FLEXIBILITY – The system can be connected with various options to extend capabilities. A cover slitting unit, cover reject unit, elevator unit, glued book block feeder, loose sheet book block feeder, and in-line three knife trimmer are all available options with the BQ-500.
| Model | BQ-500 |
|---|---|
| Binding Mode | Binding with milling, Binding without milling and Pad binding |
| Number of Clamps | 4 |
| Book Thickness |
Min. 1 mm or 0.04” Max. 65 mm or 2.56” |
| Cover Weight Range |
Normal Paper 81.4 to 302.4 gsm Coated Paper 104.7 to 348.9 gsm |
| Cycle Speed |
Cover Binding (EVA glue): Max. 1,350 cycles per hour (EVA) Cover Binding (PUR glue): Max. 1,000 cycles per hour (PUR) |
