User-friendly operation by color touchscreen and wireless remote control –A large color touchscreen is icon-based for user-friendly operation. The graphical screen guides the user through all set-up procedures with ease. Frequently operated buttons are arranged on a wireless remote control, which is included as standard. The remote provides for collating speed adjustment and start/stop/jog operation, and lets you monitor the feeding or delivering condition.

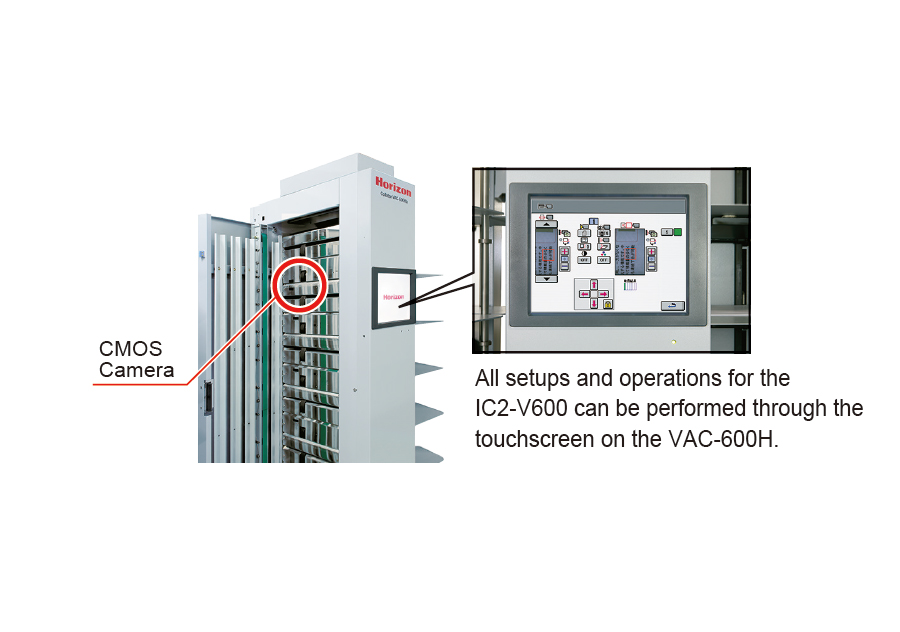

Image checking system IC2-V600(Option) – The VAC-600H can be equipped with an image checking camera. This checking system stores and checks the printed image of each page on each feed cycle to insure page order and integrity. The camera is housed in the transport section for space efficiency.
| Model | VAC-600H |
|---|---|
| Number of Bins | 6 bins / 12 bins / 18 bins / 24 bins / 30 bins / 36 bins |
| Sheet Size | Width x Length Max. 350 x 500 mm or 13.77” x 19.68” Min. 120 x 148 mm or 4.73” x 5.83” |
| Sheet Weight Range | Coated Paper: 74 to 210 gsm or 20 to 55 lb Normal Paper: 53 to 210 gsm or 14 to 55 lb 8-page fold signature: up to 105 gsm or 27 lb |
| Bin Pile Height | Max. 130 mmor 5.11” |
| Sheet Overlap | 4 Steps |
| Production Speed | 6 bins Max. 9,900 sets per hour (A5LEF, Straight Receiving) Max. 9,600 sets per hour (A4LEF, Straight Receiving) *Production speed is limited by the type of finisher or sheet weight. |
