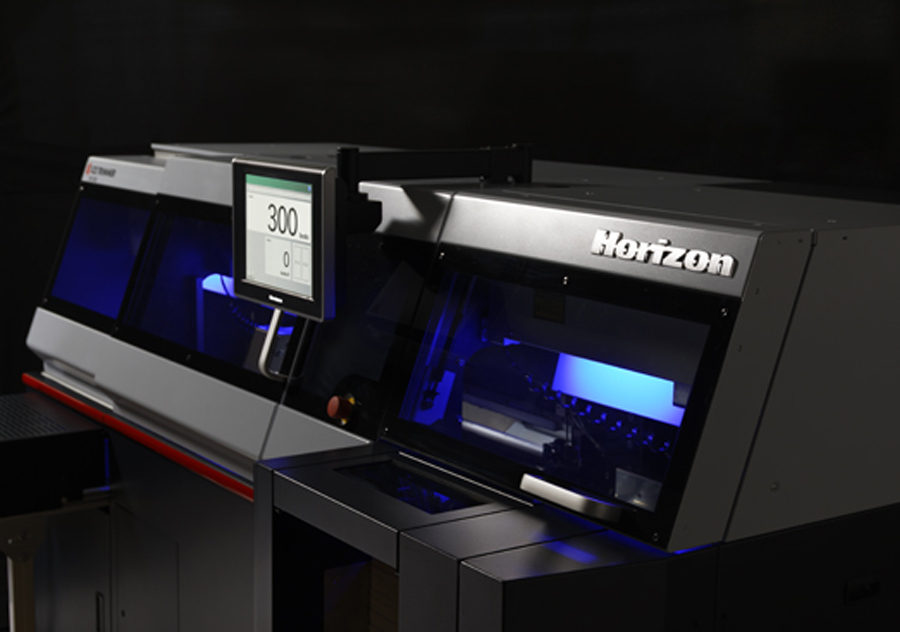

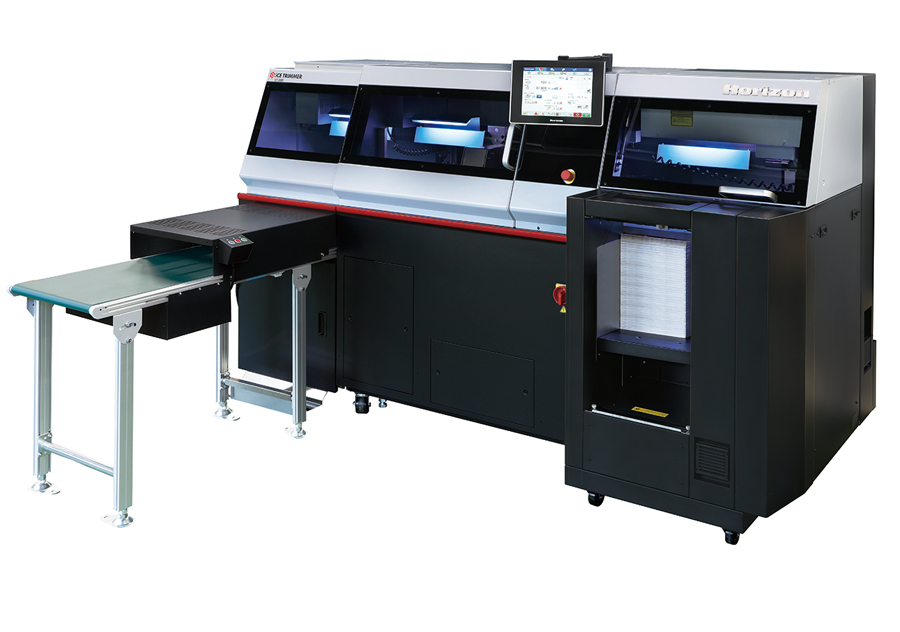

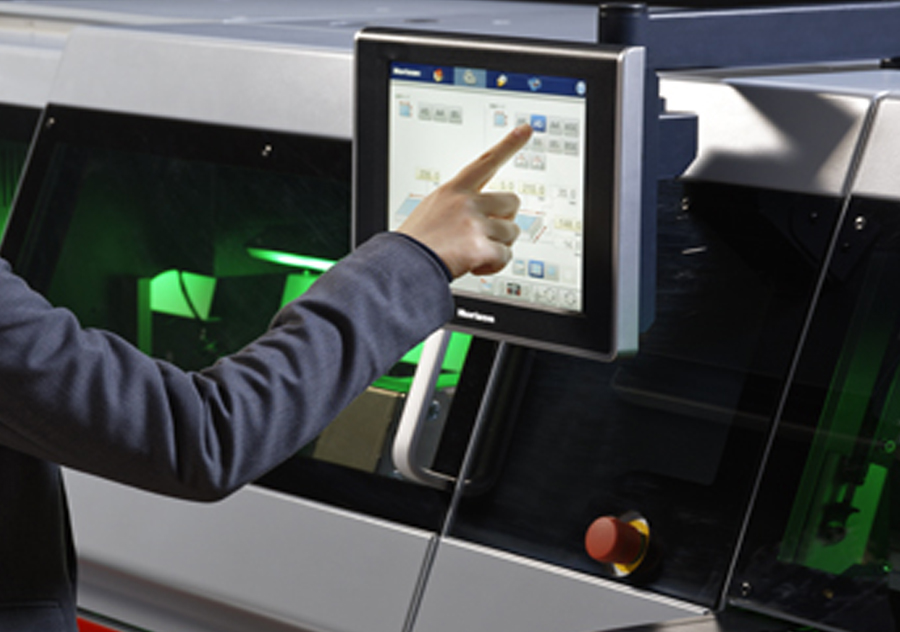

HIGH SPEED – The HT-300 is a single knife three side trimmer with fully automated setup features. The maximum production speed is 300 cycles per hour for increased productivity.
HIGH QUALITY – Accurate and clean cuts are achieved with precision automation and new features such as auto book thickness measuring and table angle adjustment.
LABOR SAVING – The HT-300 can be connected inline with Horizon perfect binders to increase productivity and reduce labor costs.
CONFIGURATION FLEXIBILITY – A variety of selections* for the feeder and delivery section allows for a flexible system configuration for both inline and offline production.
*For the feeder: stack or pusher in feed
For the delivery unit: delivery stacker or conveyor (front/side)
| Model | HT-300 |
|---|---|
| Untrimmed Book Size |
Standard Tables Table A for portrait: Max. 350 × 235 mm or 13.775" × 9.250" Min. 277 × 206 mm or 10.910" x 8.115" Table B for portrait: Max. 350 × 235 mm or 13.775" × 9.250" Min. 204 × 136 mm or 8.035" x 5.355" Table C for landscape: Max. 320 × 350 mm or 12.595" × 13.775" Min. 211 × 275 mm or 8.310" x 10.830" Table K for A6: Max. 320 × 219 mm or 12.595" × 8.620" Min. 152 × 107 mm or 5.985" x 4.215" |
| Trim Width |
Max. 99.9 mm or 3.930” Min. 2 mm or 0.080” “0” can be entered (no trimming). |
| Trim Height |
Max. 51 mm or 2.005” Min. 1 mm or 0.040” |
