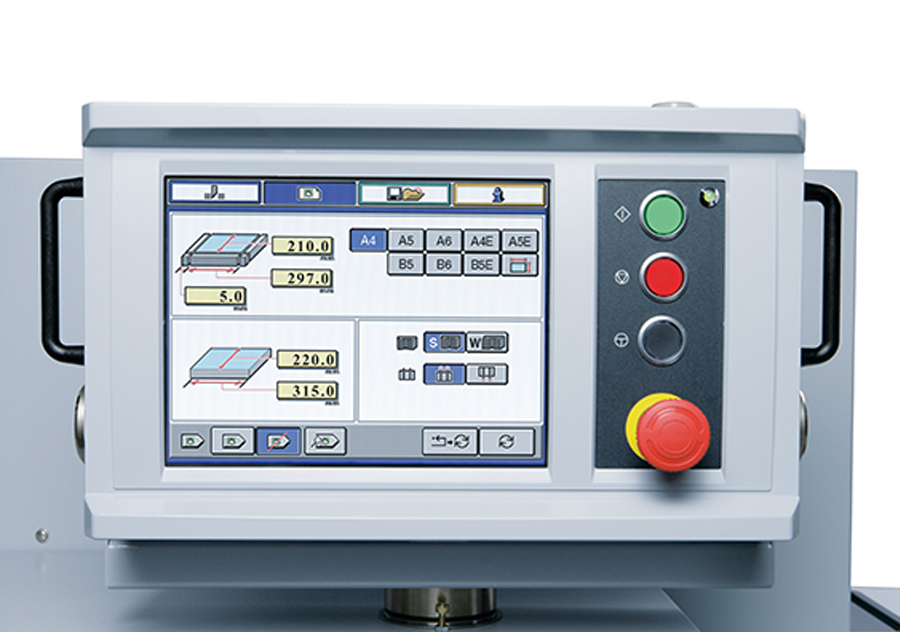

Automated Set Up – Most sections can be set up automatically by inputting the untrimmed size and fi nished size into the intuitive color touch screen for quick and accurate change over.
Servo Motor Driven – Servo motors are employed for accurate positioning of the book block. Also, through the touch panel screen, the pressure of the press is adjusted automatically so that no mark remains on the trimmed book. Oil less control for environmental friendly operation.
High Quality Finish – Rigid construction and heavy-duty mechanisms ensure consistent, accurate quality.
Book of one Production – Books of the same size but different thickness can be trimmed at the same time, for true book of one production.
To handle this production you can choose either one of operation;
1. input maximum book block thickness and the system will trim within the inputted thickness range continuously.
2. the optional TD-80 will measure the thickness of each book before trimming and the press plate waiting position will automatically set for faster production.

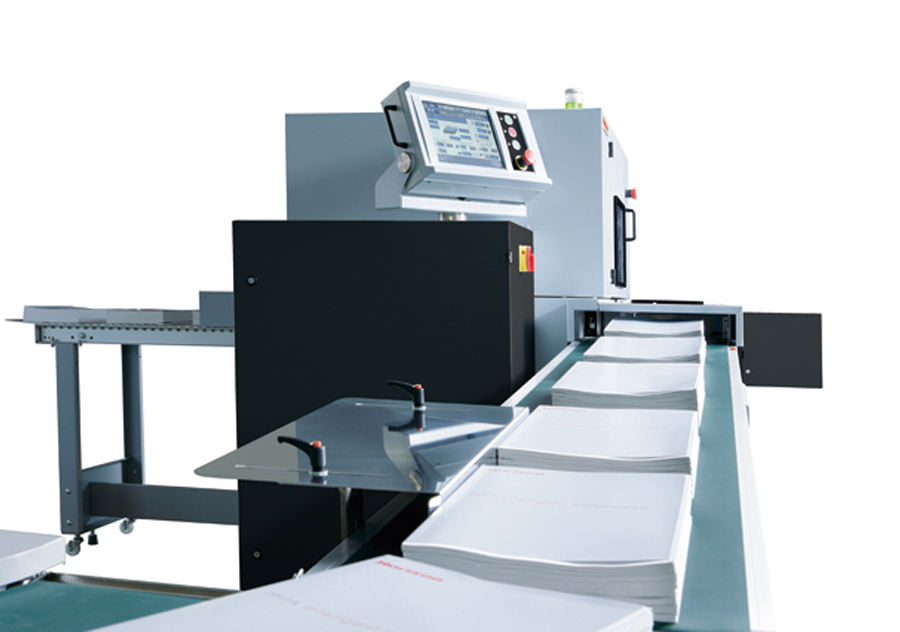

In-line Production – System can be placed in-line with Horizon perfect binders BQ-470, SB-07 or SB-09S for effi cient book production.
| Model | HT-80 |
|---|---|
| Untrimmed Book Size |
Spine Length x Fore-edge Length Max. 330 x 330 mm or 13” x 13” 350 x 330 mm or 13.78” x 13” (When Using the Optional C-80L) Min. 145 x 105 mm or 5.71” x 4.135” |
| Trim Width | Top and bottom: Max. 30 mm or 1.18” each Fore-edge: Max. 30 mm or 1.18” |
| Trim Height | 1 to 51 mm or 0.04" to 2" |
| Production Speed | 400 to 1,000 cycles per hour |
