HIGH QUALITY –Newly designed saddle-stitching system achieves high quality booklet production at a high speed. The sheets are tightly folded along the accurate scoring lines made one by one for consistent quality production without any special skill.
HIGH PRODUCTIVITY – Newly developed sheet transport system enables smooth and stable transportation of thin sheets at a high speed. The system can produce 6,000 booklets per hour at maximum.
VARIABLE DATA HANDLING –Variable page count applications can be handled without any operator intervention. The in-line configuration insures sheet-to-sheet integrity.

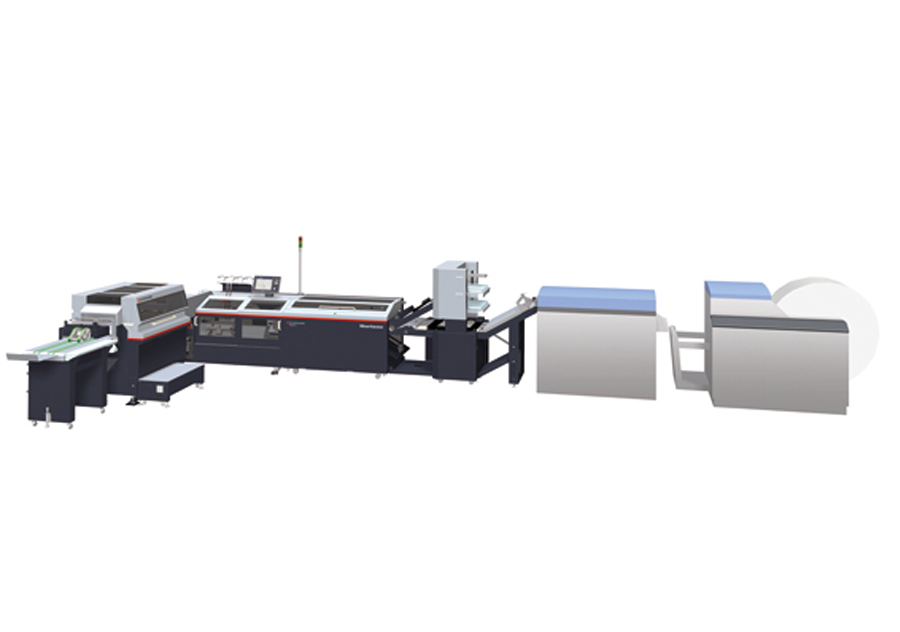

FLEXIBLE INSERTION – The optional cover feeder CF-50D enables flexible insertion of up to 3 sheets in the booklet. The top-feed mechanism enables smooth sheet insertion of a wide variety of sheets.

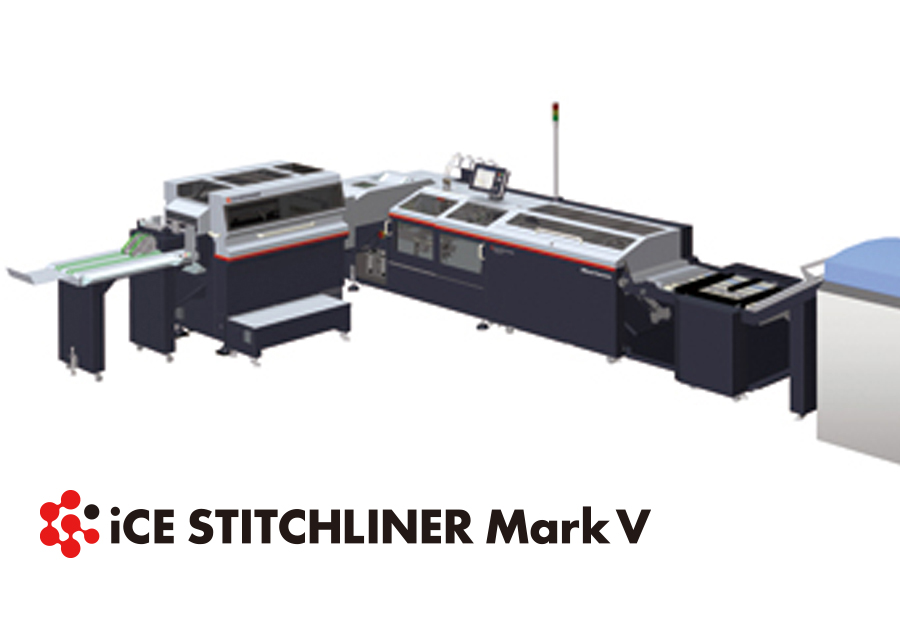

| Model | iCE STITCHLINER Mark V |
|---|---|
| Finishing Type | Saddle Stitch, Fold and Trim |
| Sheet Size | Width X Length Portrait Max. 508 x 356 mm or 20.000” x 14.015” Landscape Max. 610 x 267 mm or 24.015” x 10.510” Min. 194 x 140 mm or 7.640” x 5.515” *There is a limit if the top-bottom size is smaller against the fore-edge size. |
| Booklet Size | Untrimmed Booklet Size Portrait: Max. 356 x 254 mm or 14.015" x 10" Landscape: Max. 267 x 305 mm or 10.510" x 12.005" Min. 140 x 97 mm or 5.515" x 3.820" (*1) *Max. 356 mm x 305 mm or 14.015” x 12.005” can be fi nished depending on substrate weight and condition. A4, A4E, JIS B5, A5, JIS B6, A6 11” x 8.5”, 8.5” x 11”, 8.5” x 7”, 8.5” x 5.5”, 4.75” x 4.75” 2-up, 4.75” x 4.75” *1: Depending on the sheet weight, sheet thickness, booklet thickness or grain direction, the booklet spine may be marked by the transport belts, or the booklet may not be arranged properly on the delivery conveyor. (In this case, the kicker may not be used.) Finished Booklet Size Portrait: Max. 352 x 252 mm or 13.855" x 9.920" Landscape: Max. 263 x 303 mm or 10.350" x 11.925" Min. 120 (*2) x 85 mm or 4.725"x 3.350" *Max. 352 mm x 303 mm or 13.855” x 11.925” can be fi nished depending on substrate weight and condition. *2: Minimum width when each of the center guides is installed in the trim section: Small Center Guide: 147 mm or 5.790” Medium Center Guide: 204 mm or 8.035” Large Center Guide: 279 mm or 10.985” |
