Product Brochure

Computerized Cross Folder
AFC-566AKT / 564AKT

High performance, space efficient automated cross-knife folding machines - The Horizon AFC-56 series feature advanced automation with user-friendliness and high quality folding.

– Set-up a wide variety of fold patterns by simply touching the corresponding icon and inputting the sheet size on the large LCD color touchscreen. 17 fold patterns are set on AFC-566AKT. 14 fold patterns are set on AFC-564AKT

– Automated setups take just a few seconds. The LCD touchscreen prompts the operator through all remaining settings for fast, efficient production. All adjustments are user-friendly and require minimal skill or training.

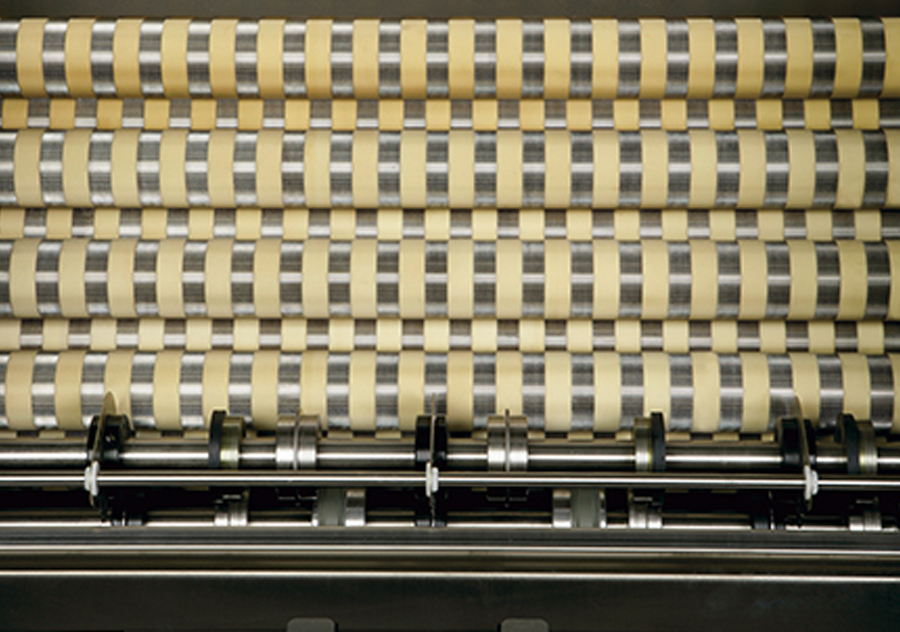

– Fold rollers are constructed with a combination of steel and soft polyurethane for superior grip and sharp, consistent folding.

– Horizon's advanced rotary suction feed system delivers fast, consistent feeding on a wide range of paper stocks.

Specifications

Model	AFC-566AKT
Machine Structure	6KTT (6 Buckles+Fold Knife+2 Buckles Below Knife)
Sheet Size (Width x Length)	Max. 558 x 850 mmor 21.965” x 33.460” (Length 1,100 mmor 43.310” with optional extension table) Min. 128 x 148 mmor 5.040” x 5.830” (Register guide minimum set position : width 74 mmor 3.0”)
Sheet Weight Range	35 to 220 gsm
Belt Speed	30 to 230 meters (99 to 754 feet) per minute Knife Fold 180 meters (590 feet) per minute
Production Speed	Suction Head 42,000 cycles per hour Knife 21,000 cycles per hour

Model	AFC-564AKT
Machine Structure	4KTT (4 Buckles+Fold Knife+2 Buckles Below Knife)
Sheet Size (Width x Length)	Max. 558 x 850 mmor 21.965” x 33.460” (Length 1,100 mmor 43.310” with optional extension table) Min. 128 x 148 mmor 5.040” x 5.830” (Register guide minimum set position : width 74 mmor 3.0”)
Sheet Weight Range	35 to 220 gsm
Belt Speed	30 to 230 meters (99 to 754 feet) per minute Knife Fold 180 meters (590 feet) per minute
Production Speed	Suction Head 42,000 cycles per hour Knife 21,000 cycles per hour
