EASY SETUP – Icon based touchscreen provides quick and easy setup without any manual adjustment. Fully-automated setup enables any operator to produce consistent, high quality folds with efficiency and high productivity.
ADVANCED AUTOMATION – Advanced automation allows operator setup without opening the safety/ sound reduction covers. Self learning software is equipped to help achieve high quality and high productivity without relying on operator skills.
APPLICATION FLEXIBILITY –Flexible machine configurations and a variety of options allow for a wide range of applications such as pamphlets, pocket maps and direct mailers.
STATUS RECOGNITION – The LED lights in the AFV-56K indicate the operational status by switching colors to identify the system status at a glance. The lights serve as white working lights when the cover is open. The color of the lights can be chosen from the touch panel.

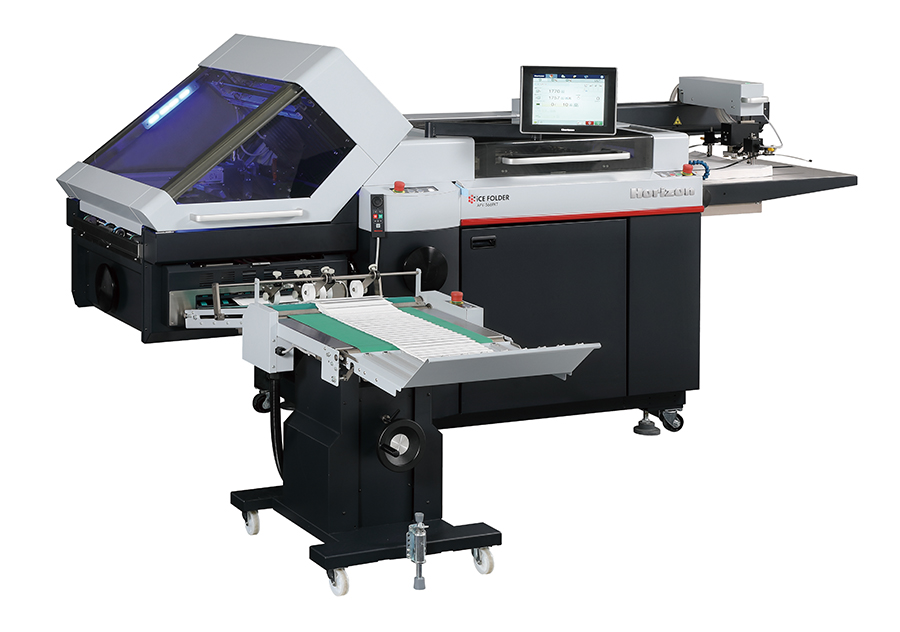

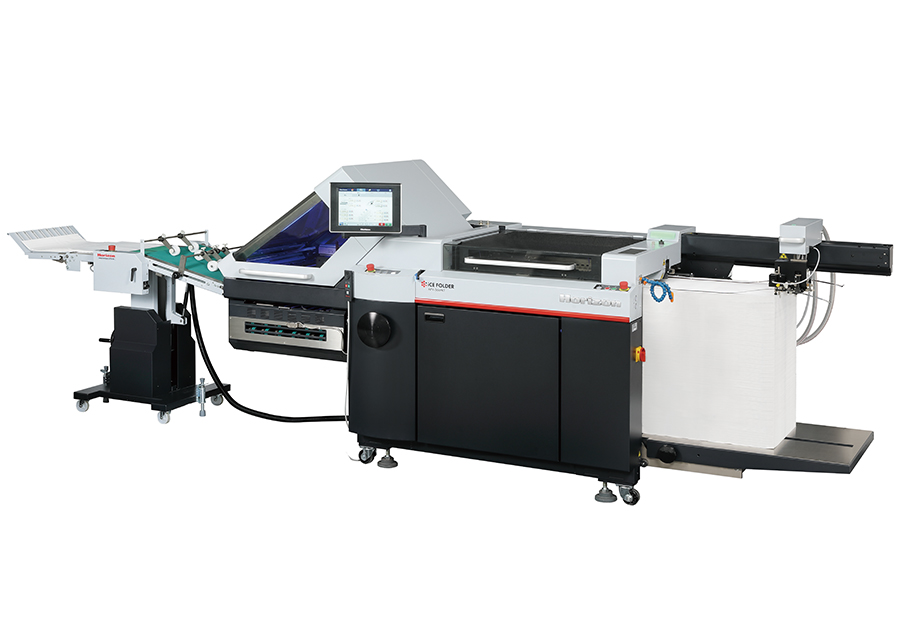

| Model | AFV-566FKT / AFV-564FKT |
|---|---|
| Machine Structure | AFV-564FKT 4 Buckle Chute + Fold Knife + 2 Buckle Chute Below Knife AFV-566FKT 6 Buckle Chute + Fold Knife + 2 Buckle Chute Below Knife |
| Sheet Size (Width x Length) | Max. 560 mm x 900 mm or 22.04" x 35.43" Min. 128 mm* x 148 mm or 5.04” x 5.83” * Minimum width when the sheet is delivered from parallel fold section. 105 mm or 4.14" when the optional Small Sheet Size kit (SSK-56V) is installed. |
| Sheet Weight Range | Uncoated Paper 40 to 250 gsm Coated Paper 50 to 232 gsm |
| Belt Speed | 30 to 270 meters per minute or 98 to 885 feet per minute |
| Production Speed | Suction Head 36,000 cycles per hour Knife 21,000 cycles per hour |
