EASY SETUP – Icon based touchscreen provides quick and easy setup without any manual adjustment. Fully-automated setup enables any operator to produce consistent, high quality folds with efficiency and high productivity.
HIGH PRODUCTIVITY – Advanced automation technology reduces set-up time dramatically. High speed production is achieved with belt speeds of 270 m/min.

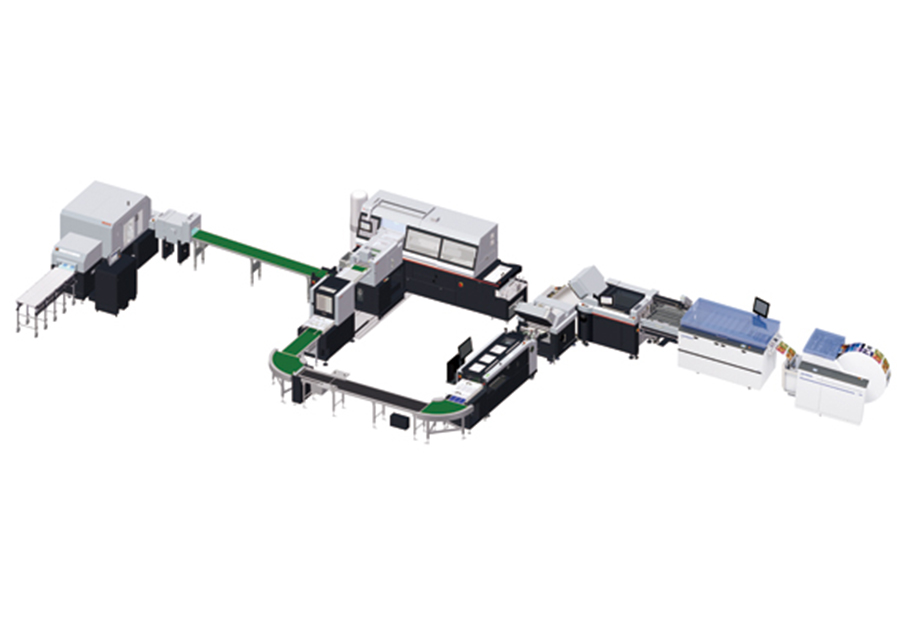

APPLICATION FLEXIBILITY –Flexible machine configurations and a variety of options allow for a wide range of applications.
STATUS RECOGNITION – The LED lights in the AFV-56S indicate the operational status by switching colors to identify the system status at a glance. The lights serve as white working lights when the cover is open. The color of the lights can be chosen from the touch panel.
| Model | AFV-56S / TV-56S SERIES |
|---|---|
| Machine Configuration | First Station AFV-566SF, 566SA: 6 Buckles, AFV-564SF, 564SA: 4 Buckles Second Station TV-566SF, 566SA: 6 Buckles, TV-564SF, 564SA: 4 Buckles |
| Sheet Size (Width x Length) | AFV-56S: Max. 560 × 900 mm or 22.04" x 35.43" *1,100 mm or 43.310" with optional long table Min. 128 × 148 mm or 5.04" x 5.83" *105 mm or 4.14" with optional small size kit TV-56S: Max. 560 × 560 mm or 22.04" x 22.04" Min. 50 × 105 mm or 1.97" x 4.14" *Even if the sheet size is within the specifi cation, it cannot be transported from the fi rst station to the second station depending on the condition such as sheet type, fold pattern, and grain direction of sheet. |
| Sheet Weight Range | Uncoated Paper 40 to 250 gsm Coated Paper 50 to 232 gsm |
| Belt Speed | 30 to 270 meters per minute or 98 to 885 feet per minute |
| Production Speed | Suction Head 40,000 cycle per hour |
