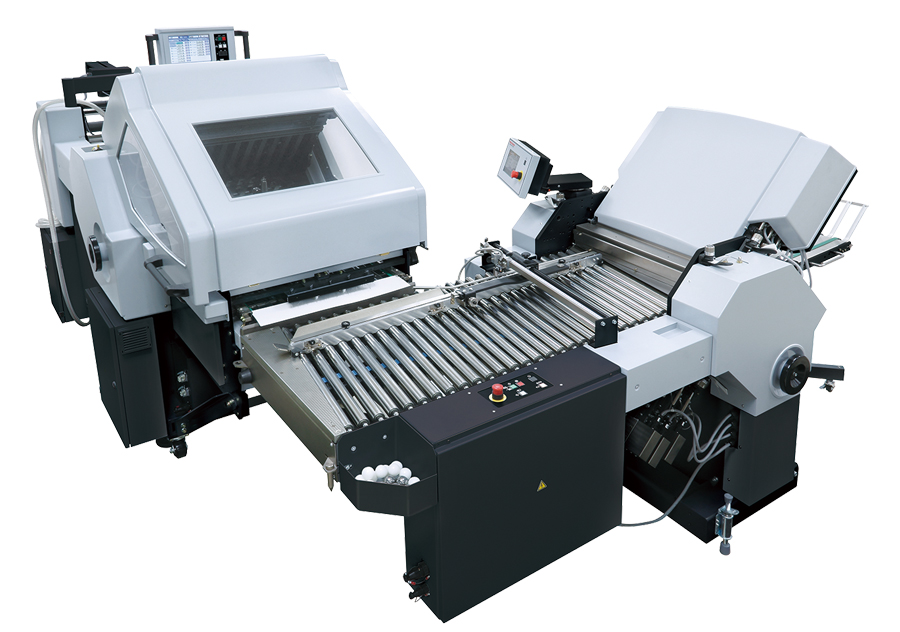

Additional folding station – Complicated fold patterns such as map folds or face up and face down 16 page signature folding can be achieved with this additional buckle station.

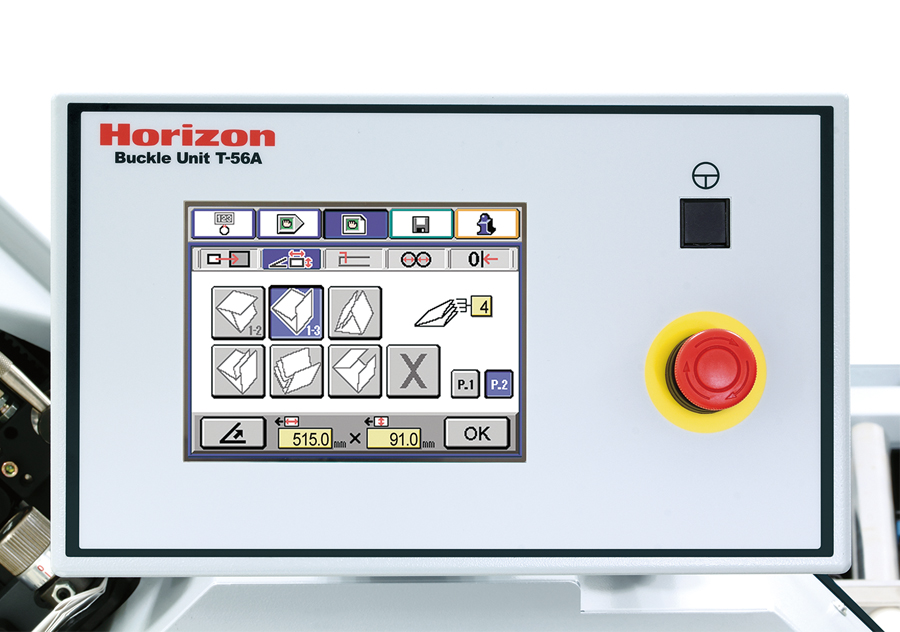

Interactive touch screen operation – Stand alone color touch screen enables set up of the folding buckle plates instantly with simple and intuitive operation.

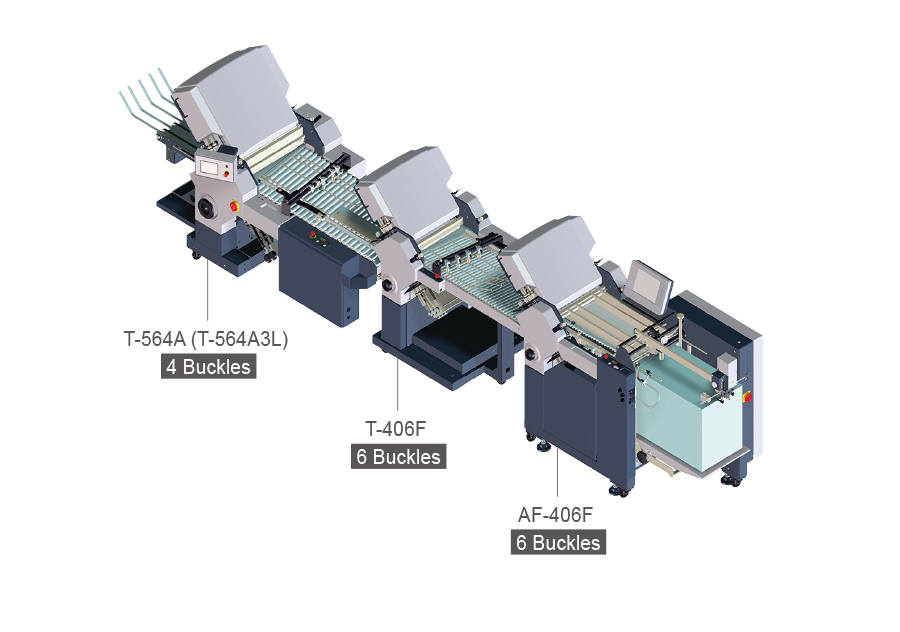

Flexible confi guration – Different infeed height options are available to match a variety of folding systems and confi gurations (custom height modules are a factory option and cannot be retrofi t in the fi eld).
| Model | T-564A / 566A |
|---|---|
| Machine Structure | T-564A: 4 Buckles T-566A: 6 Buckles |
| Sheet Size (Width x Length) | Max. 558 x 558 mm/ 21.96” x 21.96” (Delivered sheet size from the upstream device) Min. 50 x 128 mm/ 1.97” x 5.04” (Delivered sheet size from the upstream device) |
| Sheet Weight Range | Uncoated Paper 35 to 209 gsm Coated Paper 50 to 232 gsm |
| Belt Speed | 30 to 240 meters per minute 99 to 787 feet per minute |
