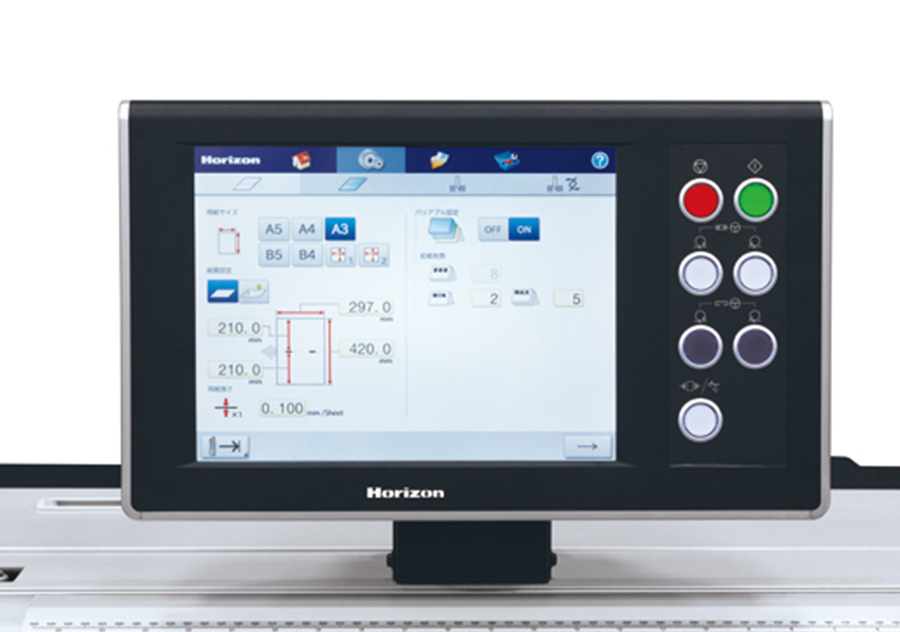

FULLY-AUTOMATED SETTINGS – All necessary settings for a wide variety of booklet formats can be performed automatically according to the booklet format and thickness. Advanced automation brings consistent high quality production with efficiency and high productivity.
HIGH QUALITY – Professional quality production is achieved with our unique systems for sheet transport and jogging, scoring and folding, stitch and fold monitoring, and positive jog register at the trimmer.
VARIABLE THICKNESS PRODUCTION – True end to end automation for variable thickness production. Variable stitch length and balance adjustment combined with variable thickness transport adjustment through the trimmer.
WIDE VARIETY OF BOOKLET FORMATS – The system can produce a wide range of applications, including A4 landscape booklets for large format calendar production, and pocket booklets. Higher productivity is achieved on A4 portrait at 6,000 booklets per hour and A4 landscape at over 5,000 booklets per hour.
| Model | iCE STITCHLINER Mark IV |
|---|---|
| Finishing Type | Saddle Stitch, Fold and Trim |
| Sheet Size | Portrait Max. 356 x 508 mm or 14.015” x 20.000” Landscape Max. 267 x 610 mm or 10.510” x 24.015” Min. 140 x 194 mm or 5.515” x 7.640” *There is a limit if the top-bottom size is smaller against the fore-edge size. A3, JIS B4, A4, JIS B5, A5 11.25” x 17.25”, 11” x 17” , 10.25”x 9.75”, 8.75” x 11.25”, 8.5” x 11”, 5.5” x 9.75” |
| Sheet Weight Range |
Normal Paper: 52.3 to 350 gsm Coated Paper: 73.3 to 350 gsm |
| Stitch Thickness |
Max. 5 mm or 0.195” (Booklet thickness 10 mm or 0.390”) (About 50 sheets of Normal Paper 81.4 gsm) When Doing Loop Stitching: Max. 3 mm or 0.118” (Booklet thickness 6 mm or 0.236”) |
| Production Speed |
Max. 6,000 booklets per hour (A4 Portrait finished from A3 sheets) Max. 5,300 booklets per hour (A4 Landscape) * The production speed is aff ected by the operation mode and paper condition. |
