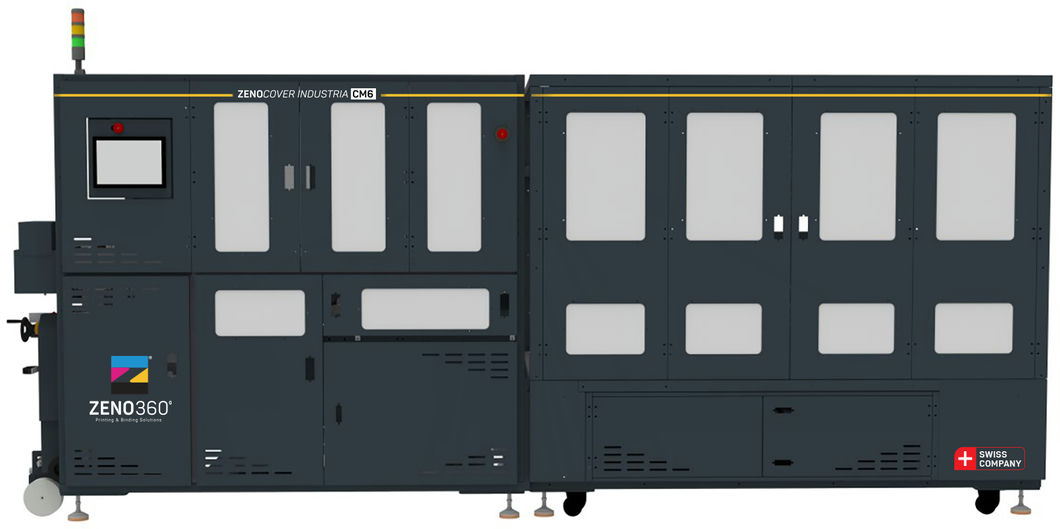

Casemaker Industria CM6
The CASEMAKER marks the next evolution in Zeno360°’s automated finishing solutions.
Best Seller
Casemaker Industria CM6
The CASEMAKER marks the next evolution in Zeno360°’s automated finishing solutions. Currently in the field testing phase, its dimensions, speed, and specifications are subject to refinement as performance optimization continues. Built for precision and seamless integration into high-volume book production, this system reflects Zeno360°’s commitment to innovation, reliability, and real-world efficiency
Key Features
- Fully automatic: Automatic feeding of the printed covers, spine and cardboard, gluing, wrapping and pressing
- Hotmelt gluing technology: easy to operate and maintain.
- Easy operation by only one operator and motorized.
- Quick format adjustment via central touch screen monitor.
Technical Specifications
Full Specifications
| Gluing Technology | Hotmelt |
|---|---|
| Finished Case Size (width x height) | Max：800mm x 420mm Min：250mm x 150mm |
| Spine Board Width | 7mm-70mm |
| Turn in Size | 9mm -20mm |
| Thickness of the Board | 2mm - 5mm |
| Speed | Up to 9 cases/min. |
| Machine Dimension (L x W x H) | 5.35(L) x 1.44(W) x 1.76(H) m ( include presser) |
| Power Supply | 220V Single-Phase |
| Maximum Power consumption | 11KW |
| Air Compressor | 0.8 mpa, > 600L/min |
